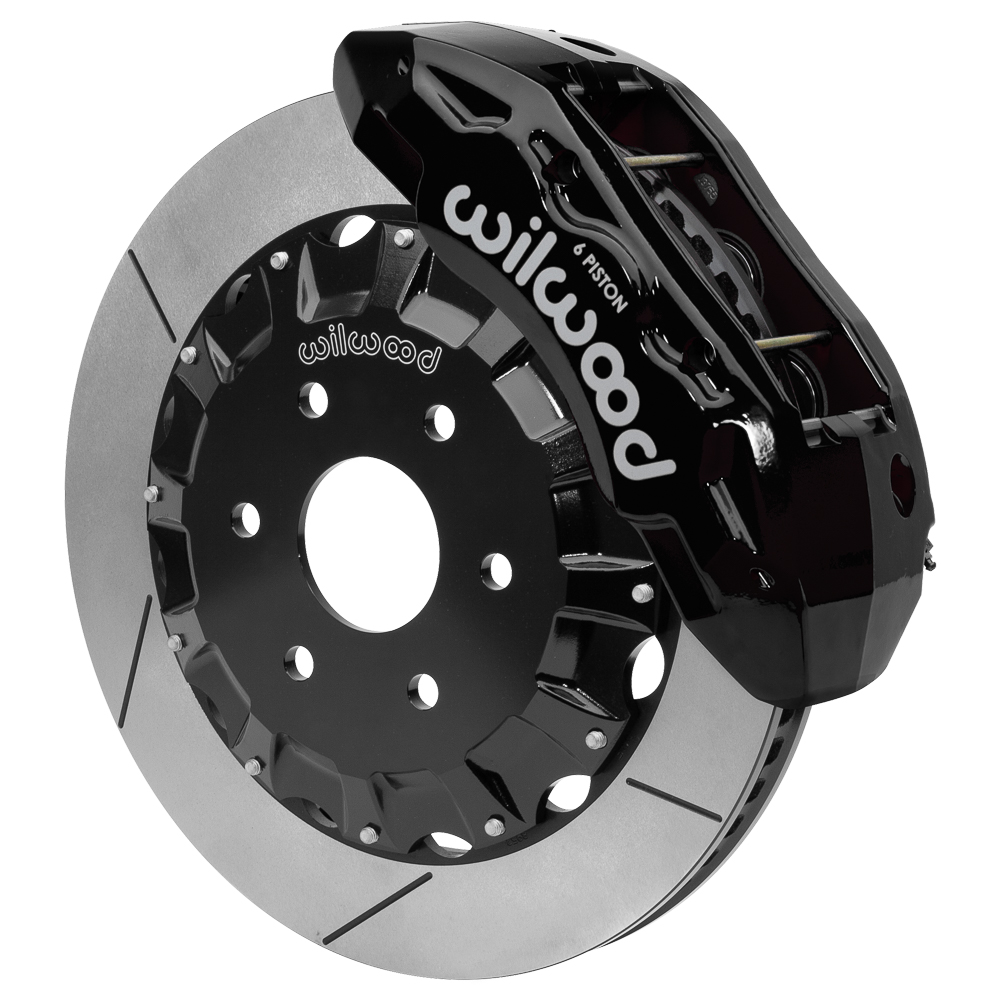

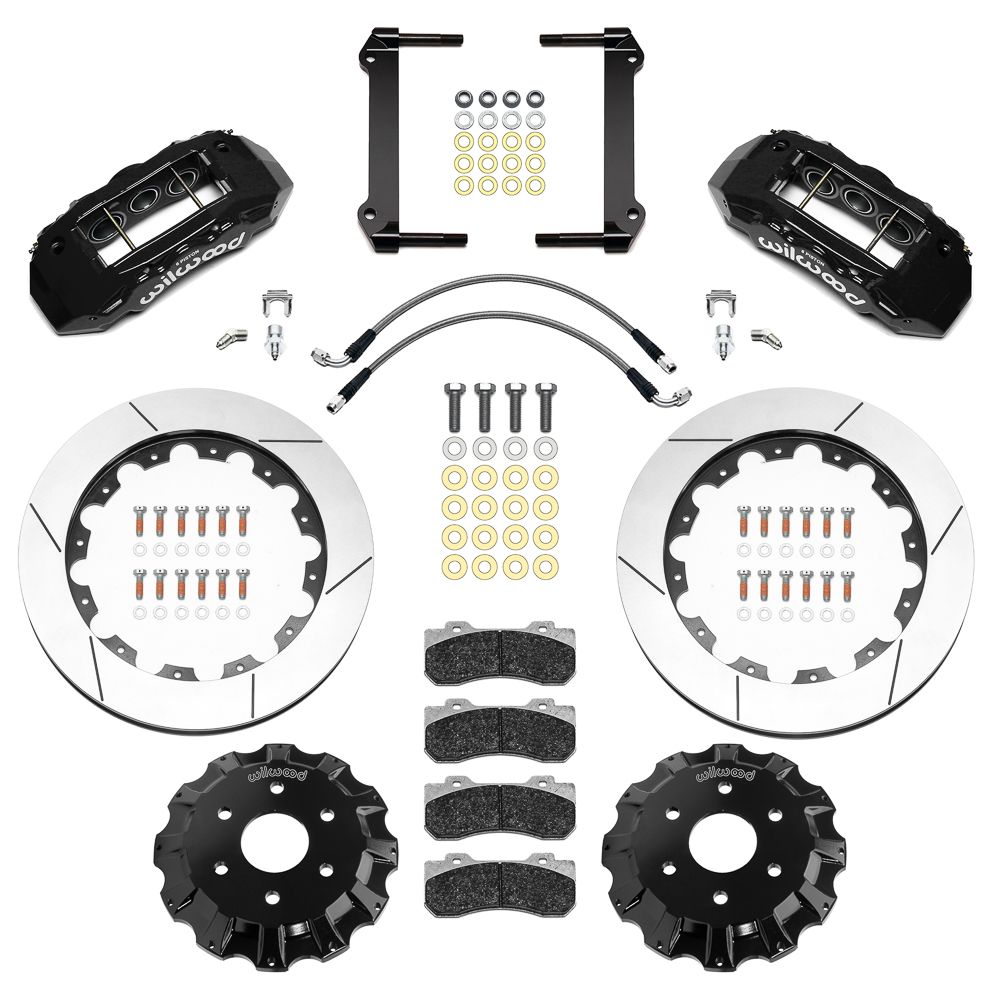

RAM 1500 TRX WILLWOOD FRONT BIG BRAKE KIT

RAM 1500 TRX WILLWOOD FRONT BIG BRAKE KIT - Image 2

RAM 1500 TRX WILLWOOD FRONT BIG BRAKE KIT

RAM TRX willwood front brake upgrade kit.

This TRX front Brake kit Was Fit to the vehicle and then removed. They are still as new.

BARGAIN! Going for BELOW cost price! $4000

PN: 140-17389/TX6R

Spindle Type:	Factory Disc Spindle
Mount Type:	Radial
Caliper Type:	6 – Black Powder Coat
Rotor Diameter:	16.00
Min Wheel Diameter Req’d*:	20

Calipers
Left Hand – Part No:	120-13818-BK
Right Hand – Part No:	120-13817-BK
Type:	TX6R
Finish Color:	Black Powder Coat
Piston Count:	6
Piston 1 Bore (in):	1.75
Piston 2 Bore (in):	1.62
Piston 3 Bore (in):	1.62
Piston Area (In²):	6.52
Piston Type:	Stainless
Mount Type:	Radial
Brake Pad Plate:	10120
Brake Pad Area (In²):	12.69
Brake Pad Volume (In³):	6.81
Pad Compound:	BP-Q

Rotors
Left Hand – Part No:	160-8954-GTB
Right Hand – Part No:	160-8953-GTB
Type:	GT 60 Curved Vane
Style:	GT Slotted
Surface Finish:	Black Electro Coat
Material:	Spec-37 Iron
Outside Diameter (in):	16.00
Width (in):	1.38
Vane Count:	60 CV
Design Type:	GT-BLK
Burnished:	No
Dynamically Balanced:	Yes

Rotor Hats
Hat – Part No:	170-8960
Type:	Truck Hat – Standard
Material:	Aluminum
Finish Color:	Black E-Coat
Hat Offset Dimension (in):	0.810
Bolt Circle 1:	6 X 5.50
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter – BC 1:	0.630
Stud Diameter – BC 2:	0.000
Stud Diameter – BC 3:	0.000

Related

Original price was: $6,000.Current price is: $4,000.

1 in stock
